ELGIN SEPARATION SOUTIONS
FEATURED INSTALLATIONS
Run-of-River Projects
Submerged Intake Projects
Aquaculture Projects
RUN-OF-RIVER PROJECTS
Montrose Creek
Coanda Screen
Location: British Columbia, Canada
Intake Capacity: 26.5 m³/s
Weir Length: 200 ft
Boulder Creek HEPP
Coanda Screen
Location: British Columbia, Canada
Intake Capacity: 12 m³/s
Weir Length: 60 ft
Kalecik HEPP
Coanda Screen
Location: Ankara, Turkey
Intake Capacity: 8 m³/s
Weir Length: 39.4 ft

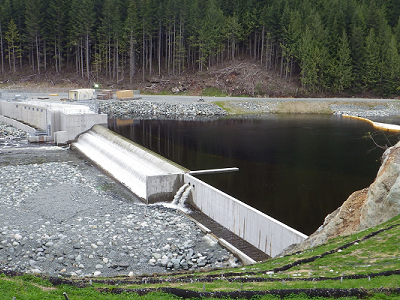

Kokish River
³Coanda Screen
Location: British Columbia, Canada
Intake Capacity: 25 m³/s
Weir Length: 192 ft
Fitzsimmons Creek
Coanda Screen
Location: British Columbia, Canada
Intake Capacity: 4.25 m³/s
Weir Length: 65.6 ft
Fire Creek
Coanda Screen
Location: British Columbia, Canada
Intake Capacity: 8.5 m³/s
Weir Length: 80 ft
Vanazit HEPP
³Coanda Screen
Location: Ankara, Turkey
Intake Capacity: 3.5 m³/s
Weir Length: 42.6 ft
Nicknaqueet River
Coanda Screen
Location: British Columbia, Canada
Intake Capacity: 1.0 m³/s
Weir Length: 21.6 ft
Line Creek
Coanda Screen
Location: Newnan, GA (USA)
Intake Capacity: 18 MGD
Weir Length: 25 ft
Mera Water Supply
Coanda Screen
Location: Pastaza Province, Ecuador
Intake Capacity: 0.28 m³/s
Weir Length: 9.2 ft
Winchie Creek
Coanda Screen
Location: British Columbia, Canada
Intake Capacity: 3.0 m³/s
Weir Length: 28 ft
Rio Tena
Coanda Screen
Location: Napo Province, Ecuador
Intake Capacity: 0.36 m³/s
Weir Length: 6.2 ft
Puyo City Water Supply
Coanda Screen
Location: Pastaza Province, Ecuador
Intake Capacity: 0.3 m³/s
Weir Length: 13.1 ft
Flat Panel Screen (more info)
Location: Hood River, OR (USA)
Intake Capacity: 80 ft³/s
Weir Length: Variable Width x 105 ft long
San Jose de Minas
Coanda Screen
Location: Quito, Ecuador
Intake Capacity: 2.7 m³/s
Weir Length: 36 ft
Flat Panel Screen (more info)
Location: Reno, NV (USA)
Intake Capacity: 600 ft³/s
Weir Length: Variable – up to 125 ft long
Lake Burton Fish Hatchery
Coanda Screen
Location: Clarkesville, GA (USA)
Intake Capacity: 15.6 ft³/s
Weir Length: 16 ft
Red Fleet Fish Barrier
Coanda Screen
Location: Vernal, UT (USA)
Intake Capacity: 286 ft³/s
Weir Length: 110 ft
SUBMERGED INTAKE PROJECTS
Catawba WTP
Tee Screen / AirBurst / Copper Nickel Coating
Location: Van Wyck, SC (USA)
Intake Capacity: 100 MGD (25 MGD x 4)
Screen Size: ⌀54 in x 184 in
Wise County WTP
Hemi Screen / AirBurst / Copper Nickel Coating
Location: Wise, VA (USA)
Intake Capacity: 2,500 GPM (1250 GPM x 2)
Screen Size: ⌀40 in x 155 in
Hefner WTP
Tee Screen / AirBurst (trailer type)
Location: Oklahoma City, OK (USA)
Intake Capacity: 250 MGD (50 MGD x 5)
Screen Size: ⌀63 in x 272 in
Saluda RWPS
Tee Screen / AirBurst / Copper Nickel Coating
Location: Saluda, SC (USA)
Intake Capacity: 8 MGD (4 MGD x 2)
Screen Size: ⌀22 in x 76 in
Richmond WTP
Hemi Screen / AirBurst
Location: Richmond, TX (USA)
Intake Capacity: 20 MGD
Screen Size: ⌀72 in x 213 in
Omohundro WTP
Tee Screen / AirBurst
Location: Nashville, TN (USA)
Intake Capacity: 90 MGD (45 MGD x 2)
Screen Size: ⌀50 in x 321 in
Greensville Co. RWF
Tee Screen / AirBurst
Location: Jarratt, VA (USA)
Intake Capacity: 100 MGD (25 MGD x 4)
Screen Size: ⌀48 in x 160 in
Delta Irrigation PS
Tee Screen / AirBurst
Location: Delta, BC (Canada)
Intake Capacity: 91.3 MGD (45.65 MGD x 2)
Screen Size: ⌀78 in x 352 in
Broad River Intake
Tee Screen / AirBurst
Location: Winnsboro, SC (USA)
Intake Capacity: 7000 GPM
Screen Size: ⌀30 in x 134 in
East Improvement District
Tee Screen / AirBurst
Location: Umatilla, OR (USA)
Intake Capacity: 161.5 MGD (31.3 MGD x 5)
Screen Size: ⌀59 in x 237 in
Merrimack River PS
Tee Screen / AirBurst
Location: Merrimack, NH (USA)
Intake Capacity: 60 MGD (30 MGD x 2)
Screen Size: ⌀58 in x 213 in
Henry Co. / Philpott WTP
Hemi Screen / AirBurst / IceBreak
Location: Martinsville, VA (USA)
Intake Capacity: 12 MGD (4 MGD x 3)
Screen Size: 18 in tall x 178 in (low profile hemi)
AQUACULTURE PROJECTS
Minto Fish Collection
Flat Screen / AirBurst
Location: near Gales, OR (USA)
Screen Size: 72 in x 74 in (qty 30)
Oxbow Fish Hatchery
Tee Screen / AirBurst
Location: Oxbow, OR (USA)
Intake Capacity: 8000 GPM
Screen Size: ⌀36 in x 140 in
Rapid River Fish Hatchery
Flat Screen
Location: Riggins, ID (USA)
Intake Capacity: 49.9 ft3/s
Screen Size: 54 in x 60 in (qty 9)
